| Model | BZ-SQ1625 (Size can be customized) |
| Effective working area | 1600x2500mm |
| Multi-function tool | Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power round knife |
| Safety devices | Safety devices use infrared sensing, safe and reliable |
| Cutting speed | 1200mm/s |
| Cutting thickness | ≤50mm Other thicknesses can be customized according to the material |
| Applicable materials | All kinds of real leather, PU leather, fabric, paper, pvc, etc. |
| Material fixing method | Vacuum partition adsorption |
| Transmission port | Network port |
| Transmission system | Panasonic servo motor, linear linear guide, timing belt, lead screw |
| Rated power | 11kw |
| Rated voltage | 380V±10%/220V±10% Optional |
| Control System | Chinese and English LCD touch screen |
| Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH |
| Support file format | AI, PLT, DXF, CDR etc |

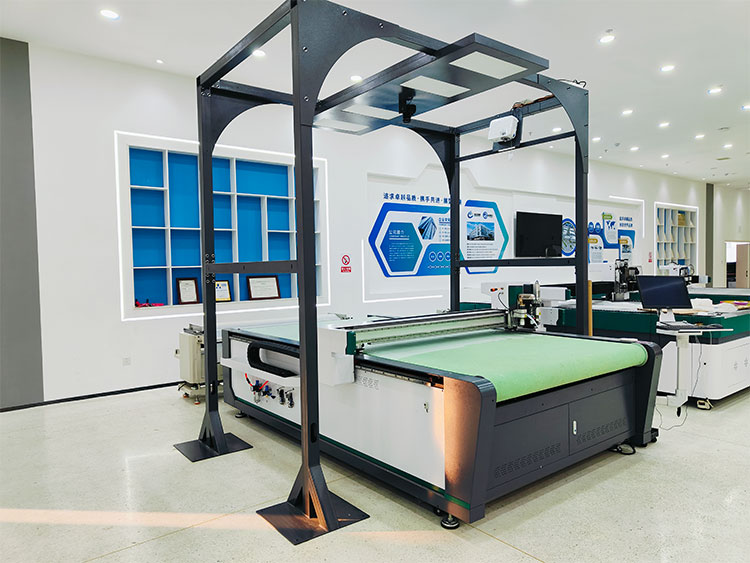

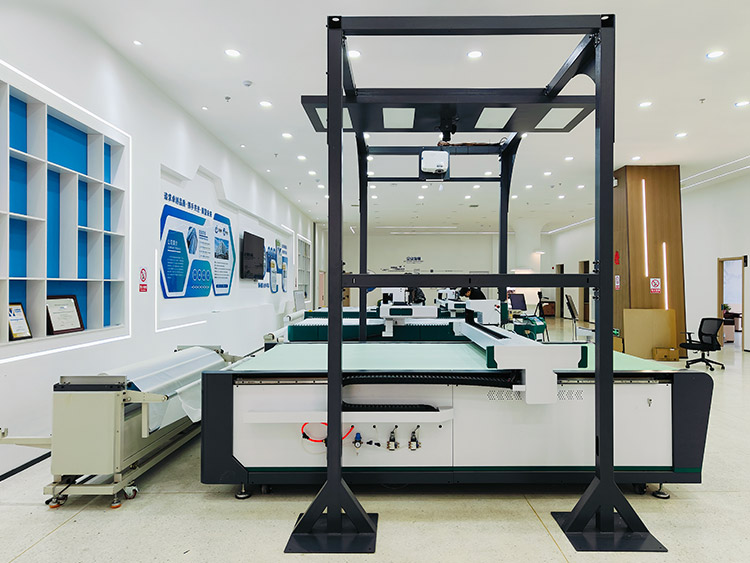

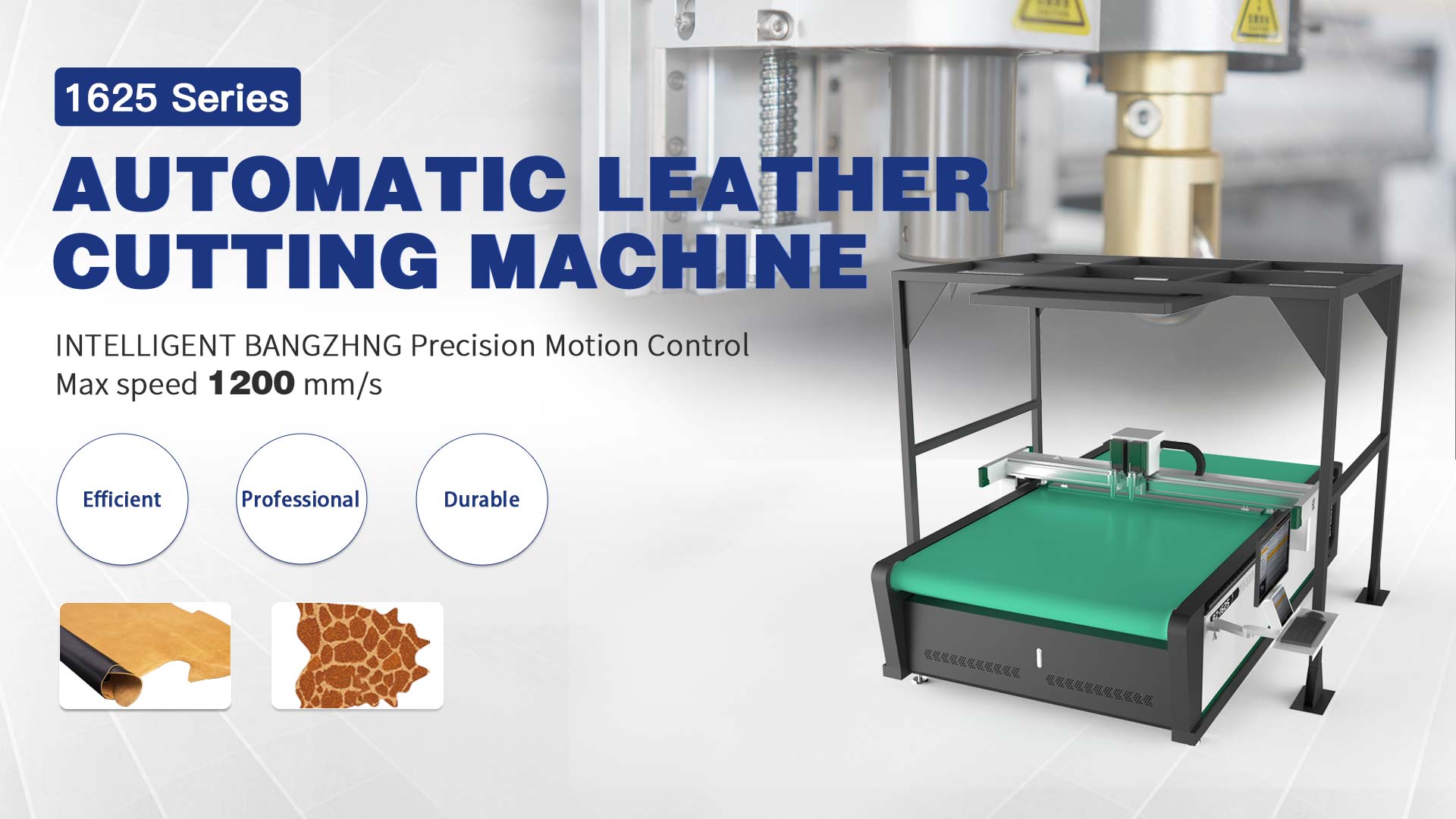

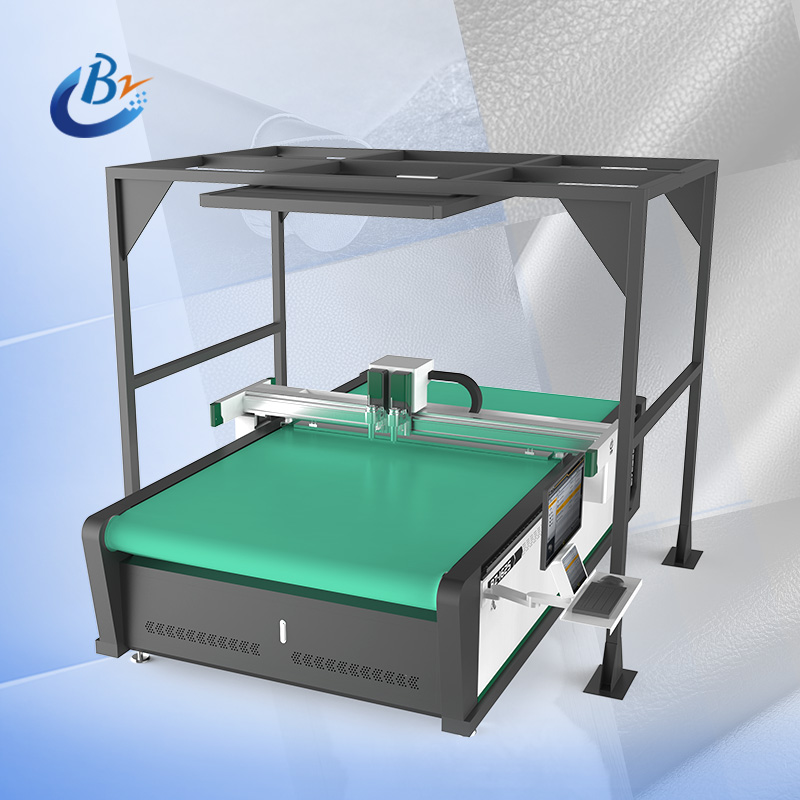

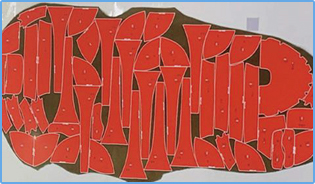

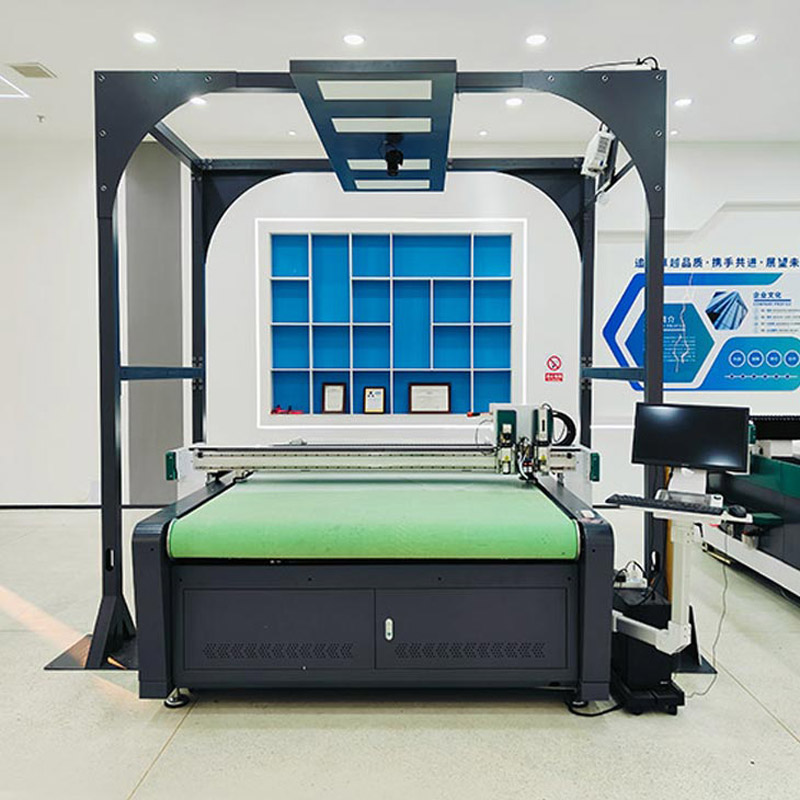

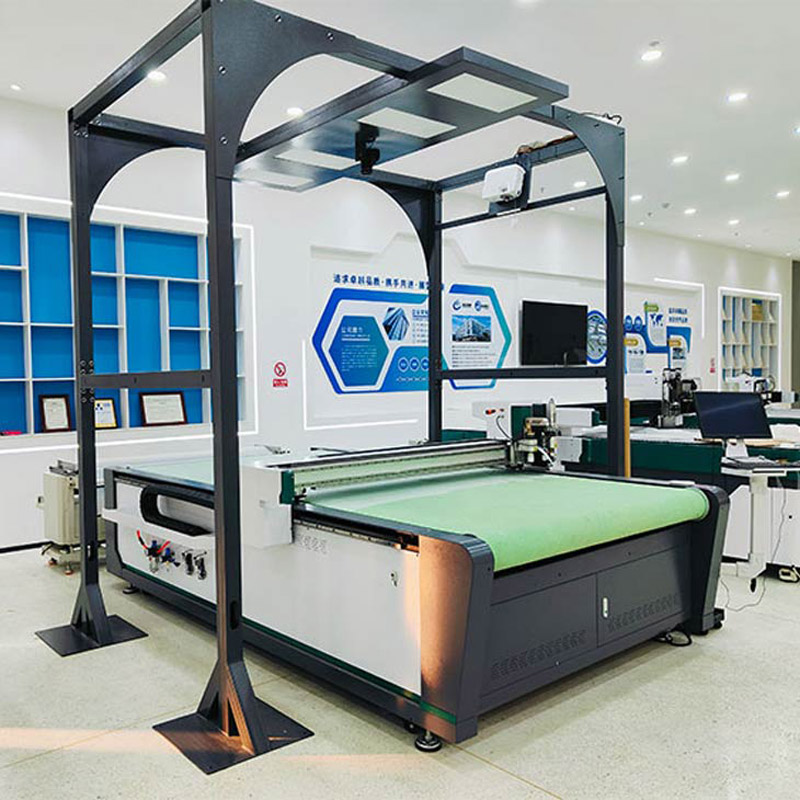

Fully automatic advanced leather cutting machine is an efficient, safe and stable choice. It is equipped with automatic edge patrol technology, automatic camera technology, and damage optimal calculation technology: it automatically searches for the damaged part of the leather and inputs it into the computer for optimal cutting calculations. It is the purpose of our R&D team to make the best solution for customers.

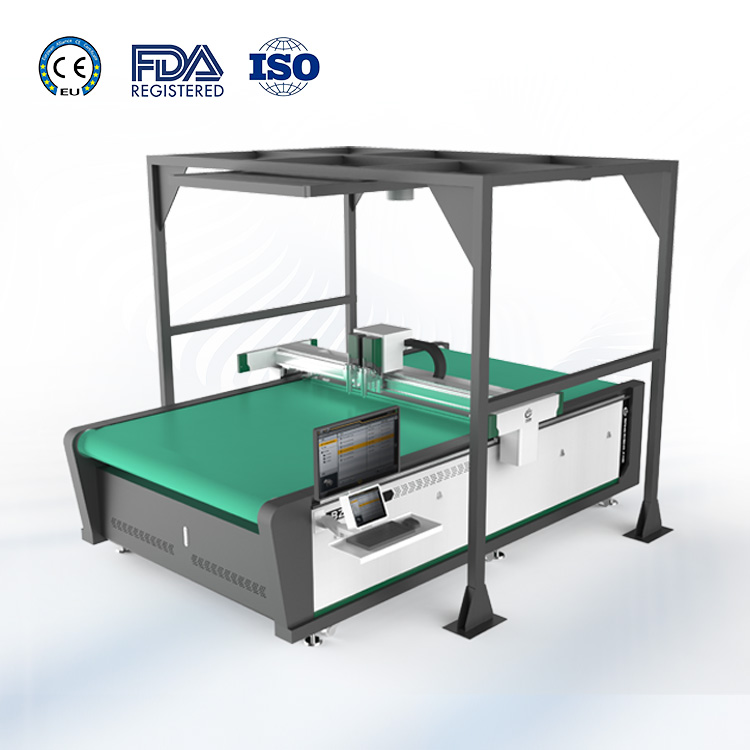

1. Genuine Leather Smart Cutting Bed: Cuts in the form of a vacuum adsorption material adsorption on the workbench. The HD projector system projects graphical layouts 1:1 on the material to achieve high-precision positioning cutting. This intuitive layout pattern projection system improves the raw material utilization rate to the greatest extent and reduces production costs.

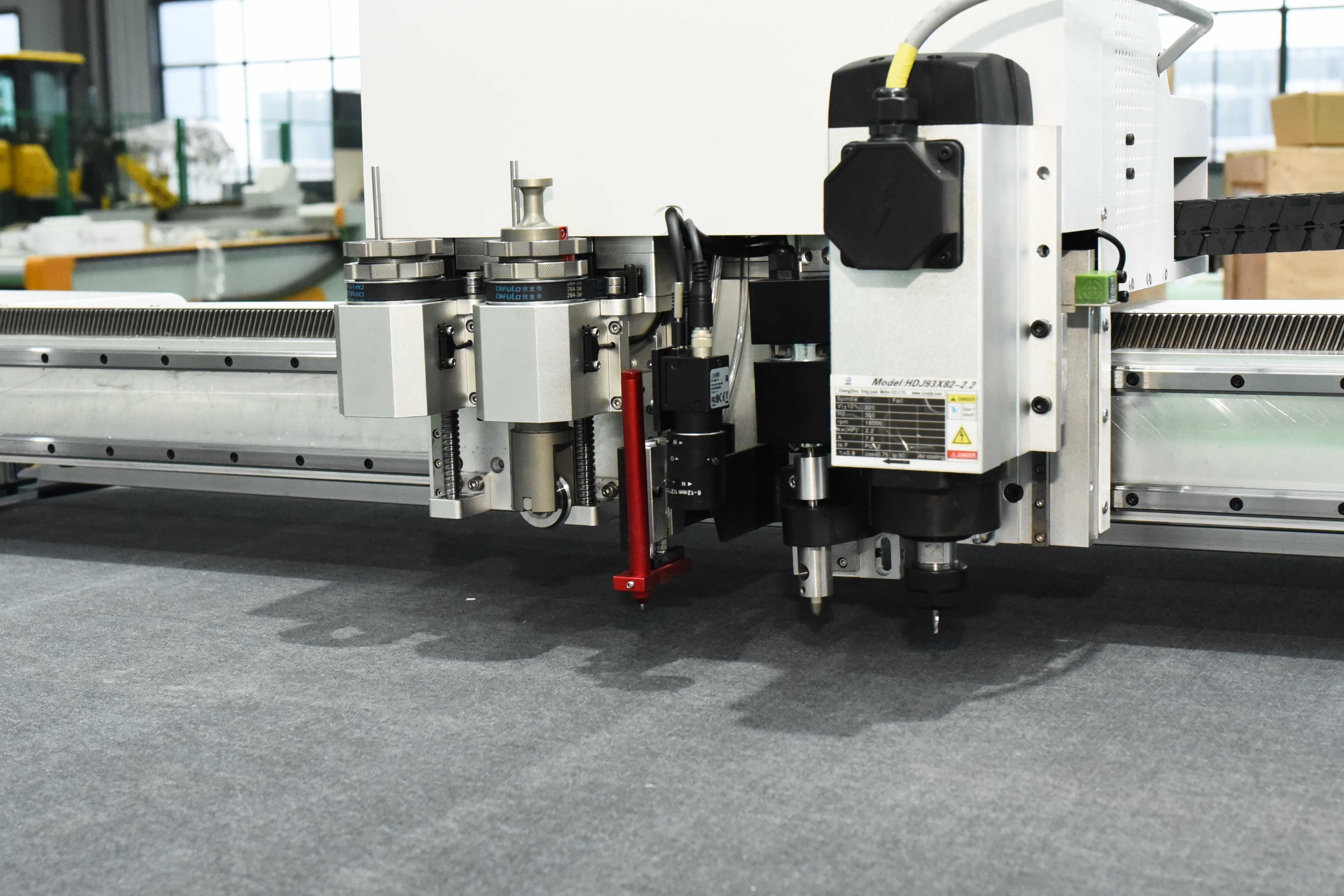

2. Multi-Function Cutting Head: Equipped with a modular head that integrates cutting tools, pens, and molds. It achieves holing, marking, and cutting complete at one time, streamlining production processes and improving efficiency.
3. Network Interconnection: The real leather intelligent cutting bed can realize network interconnection. The board room and workshop can maintain a seamless connection through wired or wireless channels, enhancing management efficiency.
Installing tools much more easier. For different cutting materials, suitable cutter heads can be selected for intelligent cutting.

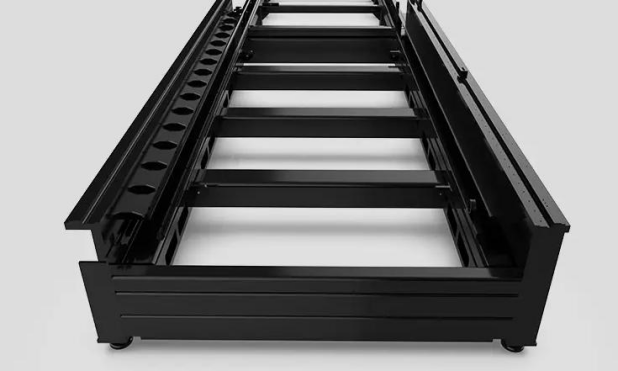

The high-strength integrated frame is processed by imported milling machines to ensure the smoothness of the guide rail, greatly improving the stability and accuracy of the cutting process.

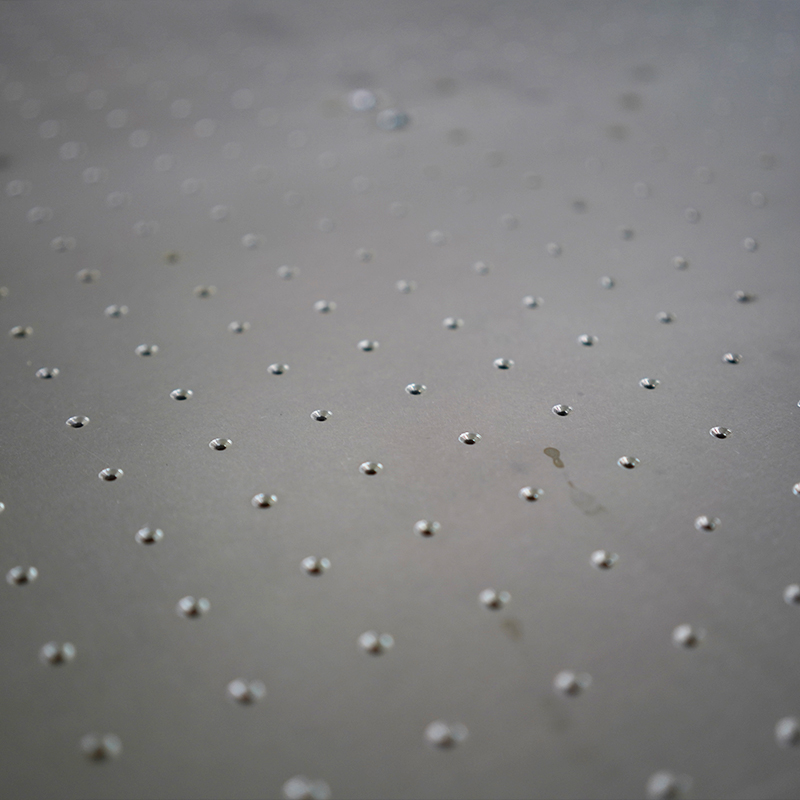

The newly upgraded internal air suction structure ensures uniform air suction in all areas of the platform, more powerful air suction, and smooth cutting.

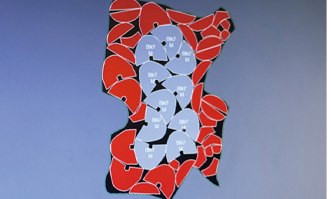

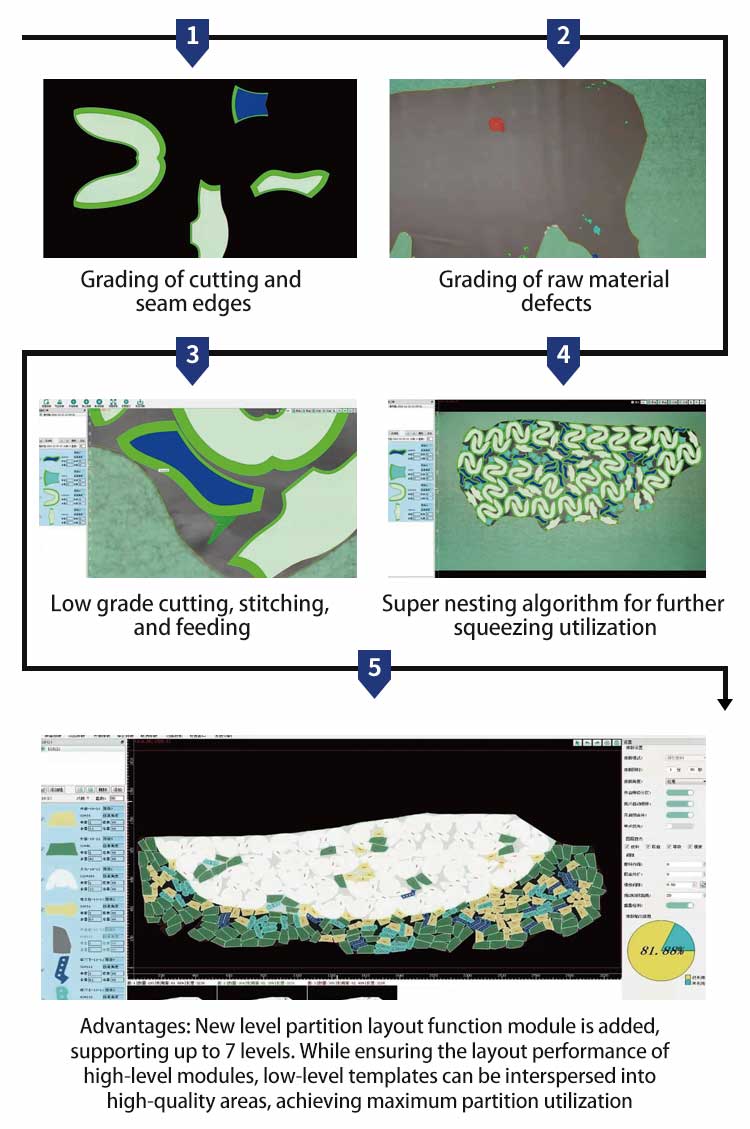

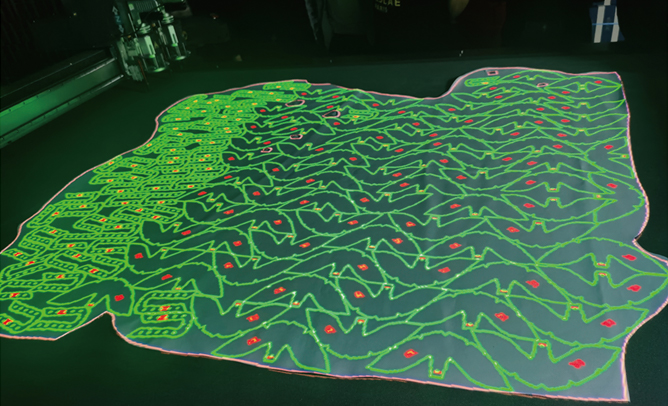

For well-functioning emissions, the calculation system performs automatic emissions, accurately calculates costs, and manages material distribution to realize a digital zero inventory strategy.

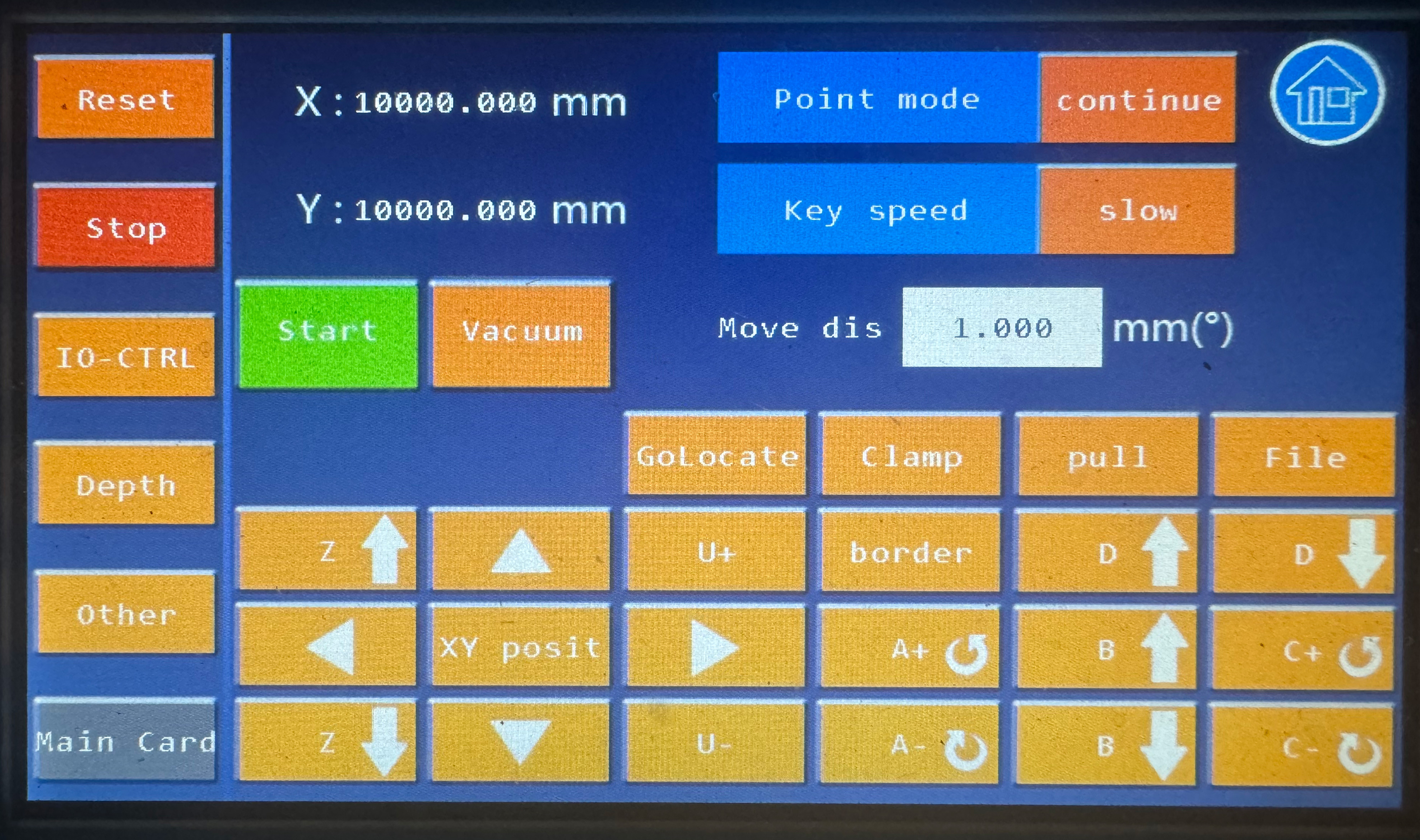

Upload design drawings to the CNC machine's control system, configure cutting parameters according to different materials, support global multi-language operations, and receive lifetime free system upgrades.

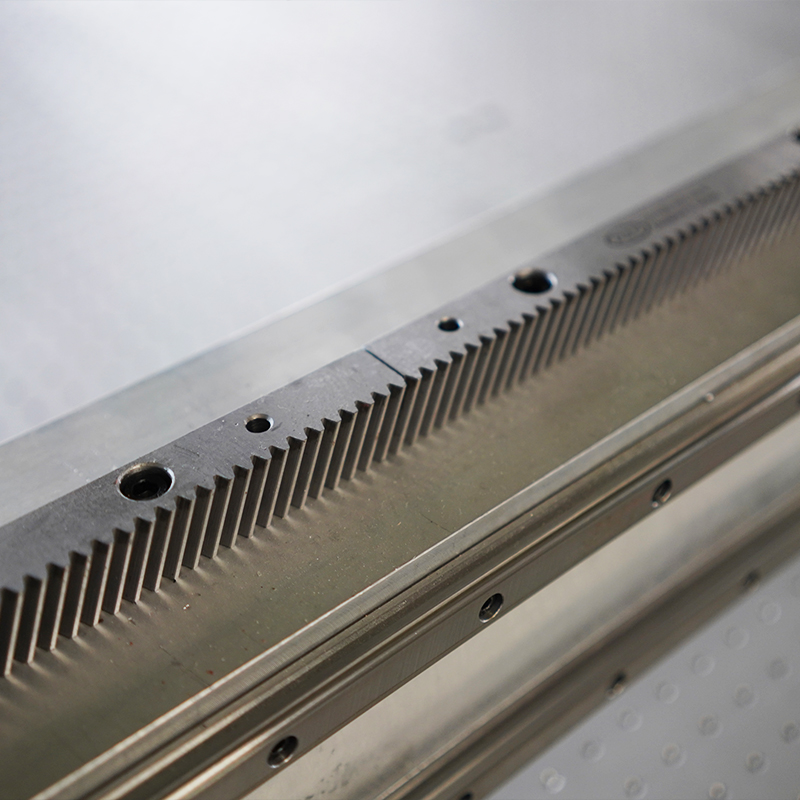

The equipment adopts rack and pinion transmission compared with belt transmission, which has large bearing capacity, high transmission accuracy, fast transmission speed, and long service life.

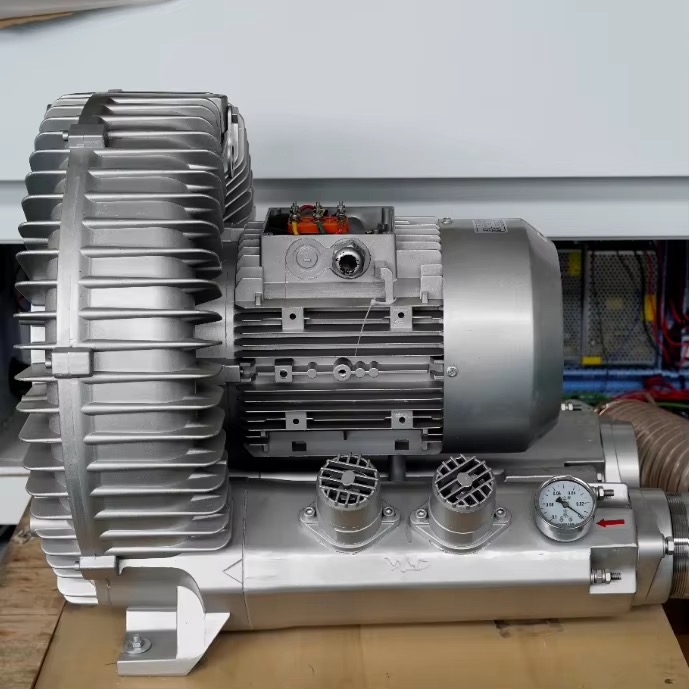

High efficiency max 11KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.

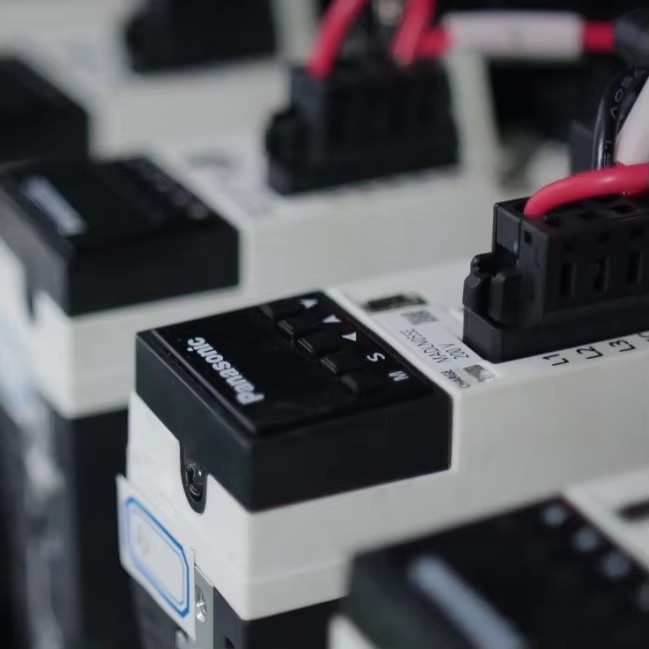

Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.

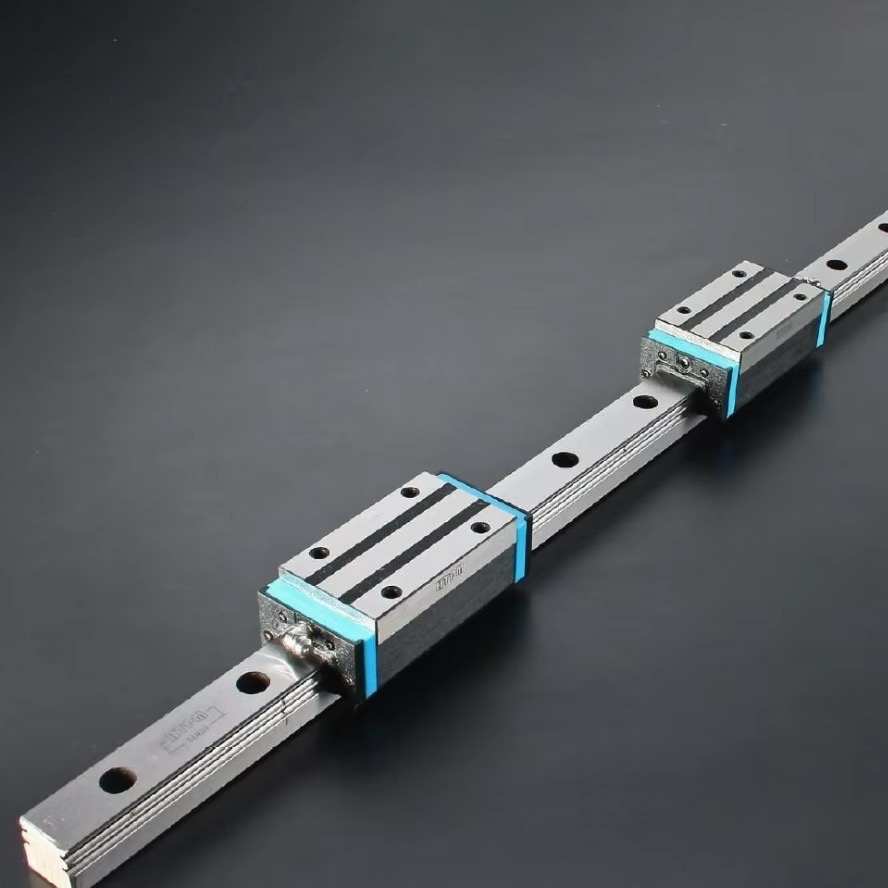

China Taiwan's HIWIN stainless steel guide rail is non-slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.

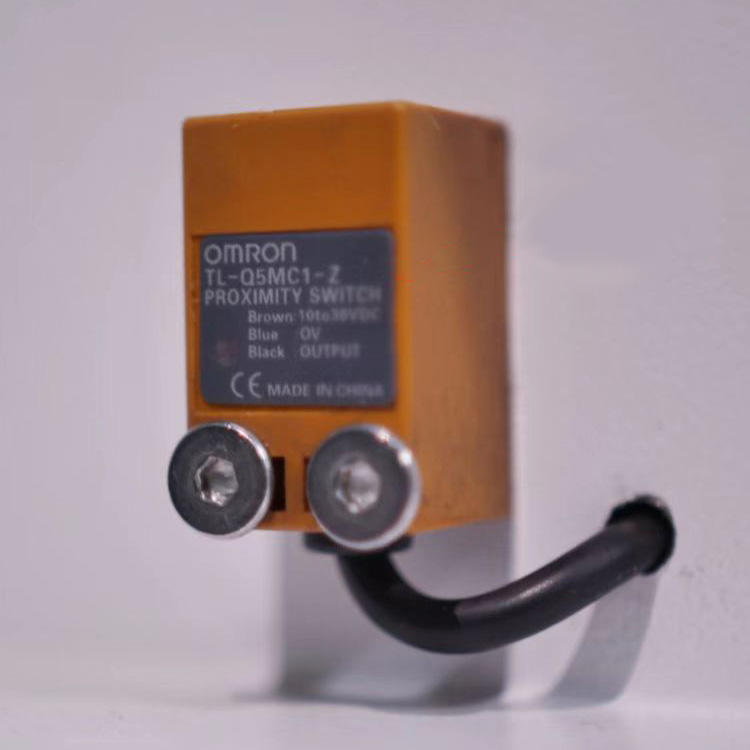

All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc., stable and durable, and all enjoy quality assurance.

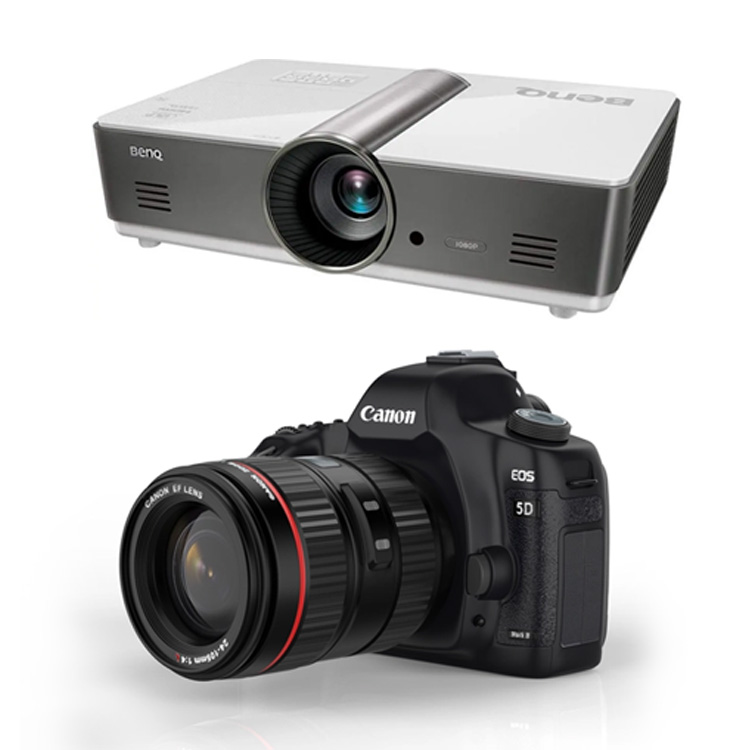

High speed visual recognition system, capable of achieving various working modes such as tracking cutting, projection without trajectory cutting, etc.
1. 3 Year Warranty: Provide a full range of technical support for life.
2. 7 * 24-Hour Online Support: Experienced technicians guarantee lifetime online support. We have enough after-sales staff, so there is no need to worry about technical support caused by time differences.
3. Installation & Training: Local on-site installation and engineer training, with about 60G of after-sales installation videos provided.

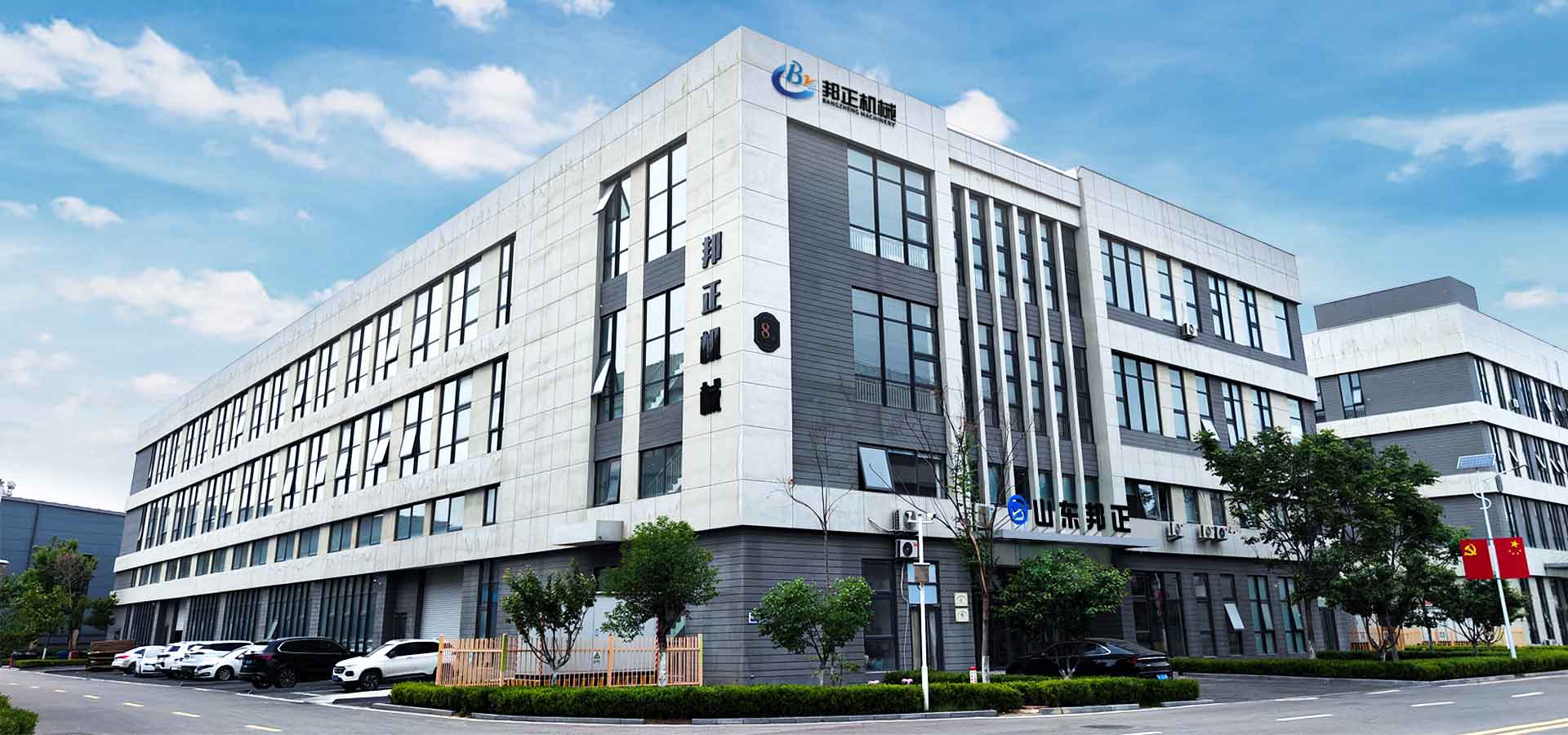

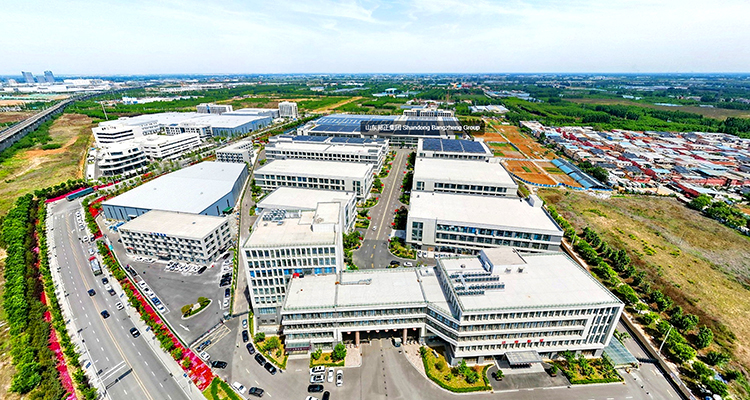

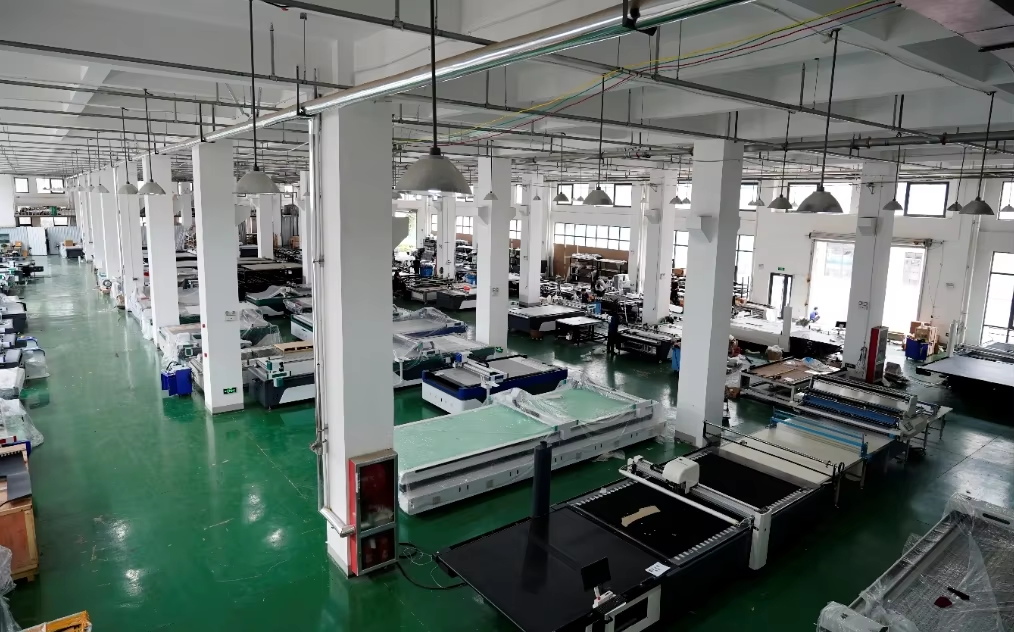

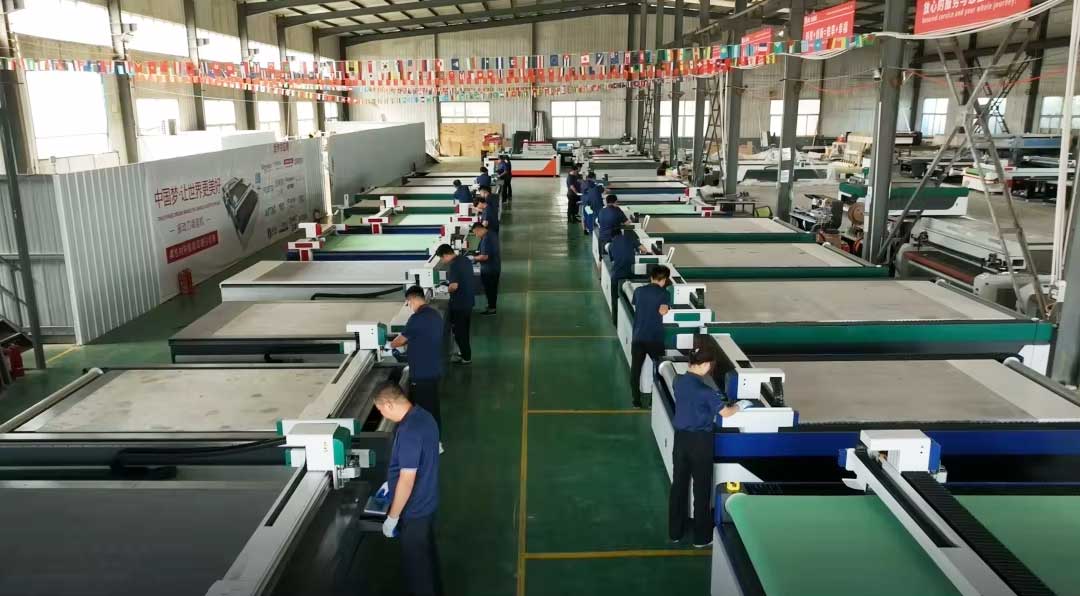

Our Machinery Group covers an area of 20,000 square meters. It is the largest flexible material cutting physical factory in northern China. As a professional manufacturer with many years of industry experience, we have established a good reputation for quality and reliability. We are a comprehensive flexible material cutting solution provider and manufacturer.
There are 30 R&D engineers, 168 production technicians, 53 market service experts, and 39 overseas after-sales engineers. Our products serve more than 80 countries and 1,930 customers around the world, with an annual output value of more than 60 million US dollars. If you are looking for a reliable cutting solution provider for your business, we are the right choice to help you solve all production problems.
We are a factory specializing in the production of cutting machines, with rich technical know-how. Each machine comes with a manual and software guide, backed by 24-hour online technical support and a library of installation videos to ensure your machine runs smoothly.
Yes, our vibratory knife cutting machines can be customized to match your specific sizing and production requirements.
We have users globally and are actively seeking suitable international agents. If you are interested, please contact us for details regarding preferential agent pricing.

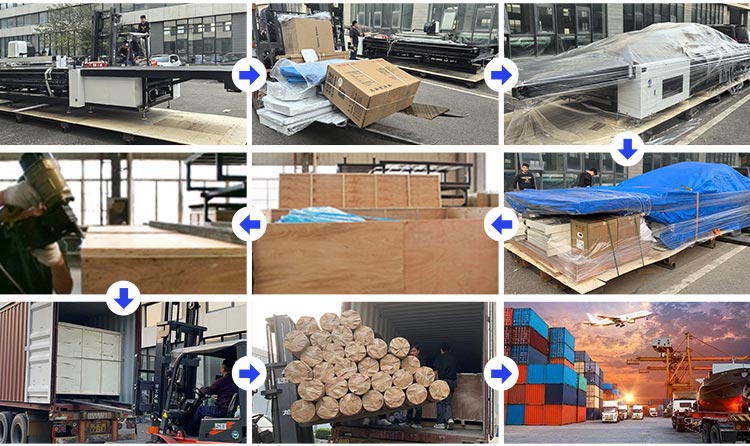

You can choose transport by air, sea, or land. We will configure and plan the most suitable and cost-effective shipping method according to your requirements and budget.

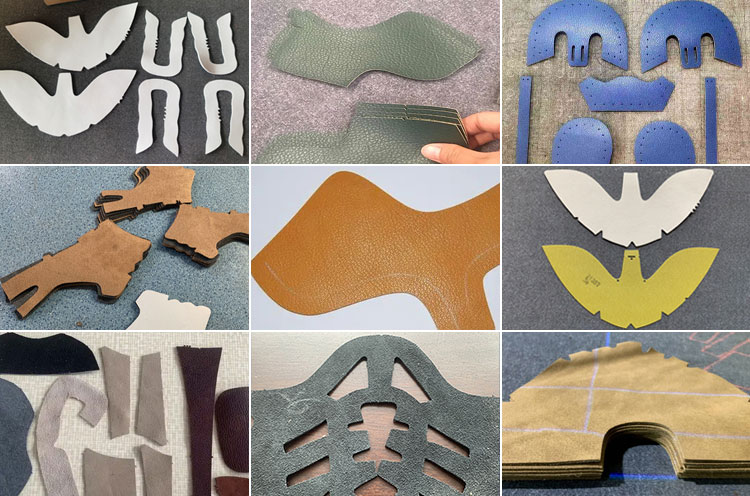

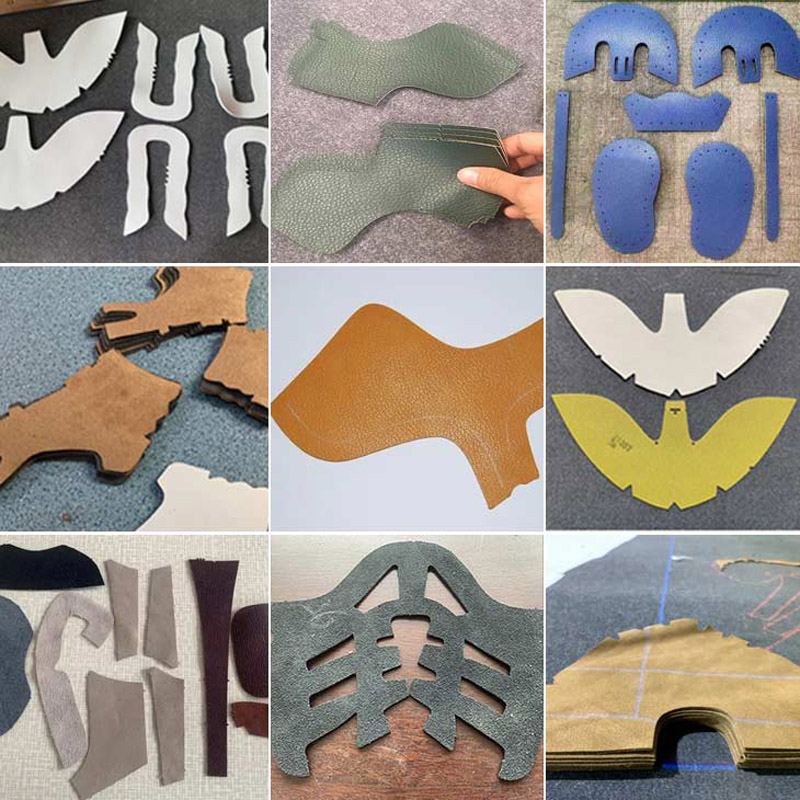

It is suitable for real leather, PU leather, fabric, paper, PVC, and other flexible materials. The standard cutting thickness is ≤50mm, which can be further customized according to the material specifications.
We offer a 3-year warranty with lifetime online technical support (available 24/7). Additionally, we provide local on-site installation and engineering training support accompanied by comprehensive instructional video materials.
